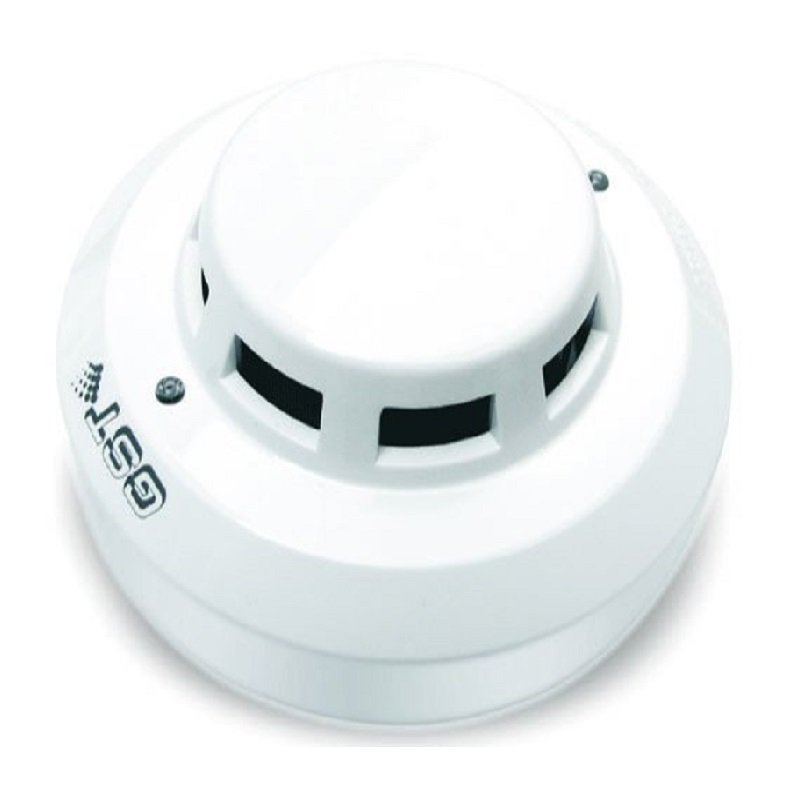

GST I- 9102 Addressable Smoke Detector

I-9102 Intelligent Photoelectric Smoke Detector is an addressable fire alarm device cooperating with GST
intelligent fire alarm control panels to build a fire detection system. It shows fire alarm by LED
indicators and transmits the fire signal to the control panel. Using infrared scattering technology, the smoke
density can be detected. The detector receives very weak infrared light under normal smokeless condition.
If smoke particles enter the chamber, the received light signal will increase by scattering. When smoke density
reaches a pre-set level, the detector will alarm out. In order to reduce interference and power consumption,
the emitting circuit works in pulse mode to prolong the life of IR LED.

Features

• Loop Powered Sounder
• Can be used as a common base of detector or stand alone with a cover.
• Two addresses for (one for Alert and one for Evacuate tones).
• Electronically addressed

Specifications

• Operating Voltage: 24VDC Loop
• Operating Current: Standby Current 1mA, Alarm Current 7mA
• Alarm Volume (SPL): 89dB @1 Meter
• Operating Environment: Temperature: -10 ~ +50°C ; Relative Humidity: 95%
• Dimension: Diameter: 10cm Height: 3.5cm (without cover), 4.5cm (with cover)
