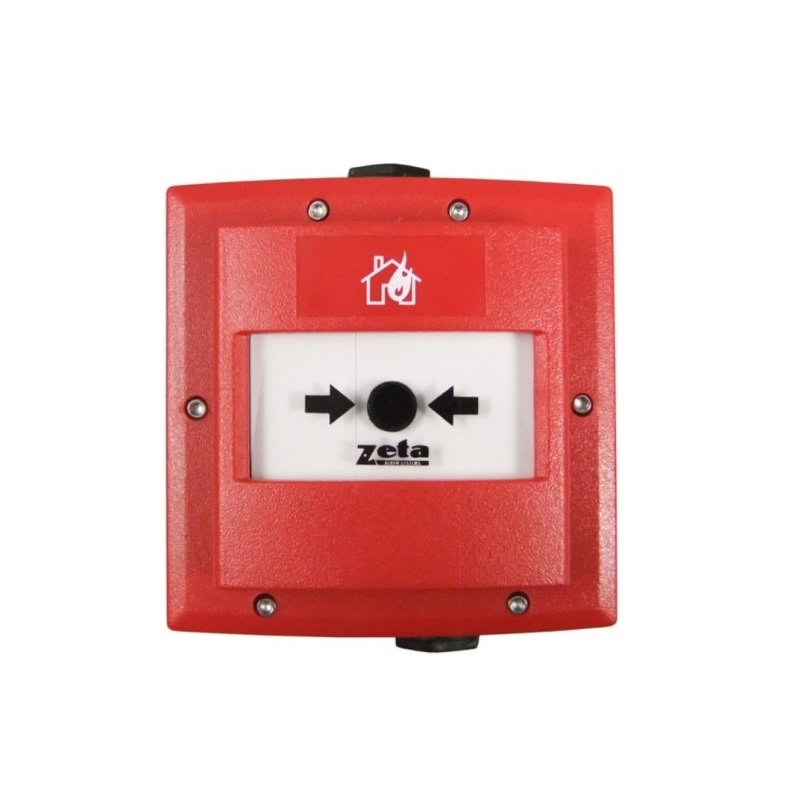

Zeta ZT-CP3/AD/WP Addressable Weatherproof Surface Mount Manual Call Point

Zeta ZT-CP3/AD/WP Addressable Weatherproof Surface Mount Manual Call Point is unique in that they mimic the
feel of breaking glass whilst offering the user the benefits and environmental advantages of a re-settable operating element. Addressing these call points is via an 8-way dip switch on the back of the call point. A special Polycarbonate cover (CP3-CV) is available for extra protection against accidental activation and thus allowing the unit to operate as a double action call point. This must be ordered separately.

Features

• Positive activation that mimics the feel of breaking glass
• Simple key to reset operating element (no broken glass)
• Glass appearance maintains operator deterrence
• Waterproof tested to IP67 (ZT-CP3/WP/AD only)
• Complete functional test with every activation
• Visible warning flag confirms activation
• Available in two colours
• EN54-11 approved

Specifications

• Product: Addressable Weatherproof Surface Mount Manual Call Point
• Brand: Zeta
• Model: ZT-CP3/AD/WP
• Input Voltage: 17-28V DC
• Element Type: Resettable
• Quiescent Current: 450µA Maximum
• Alarm Current: 2.3mA Maximum
• Operating Temperature: -20 degrees C to +60 degrees C
• IP Rating: IP67
• Size (W x H x Dmm): 119 x 119 x 62
